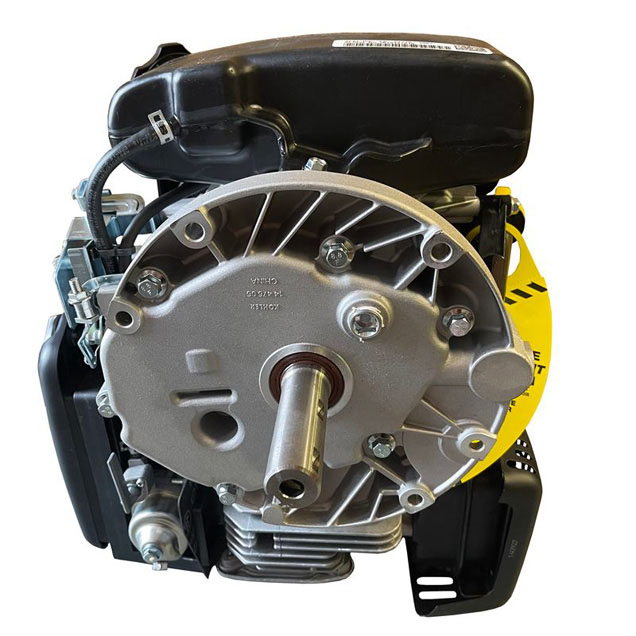

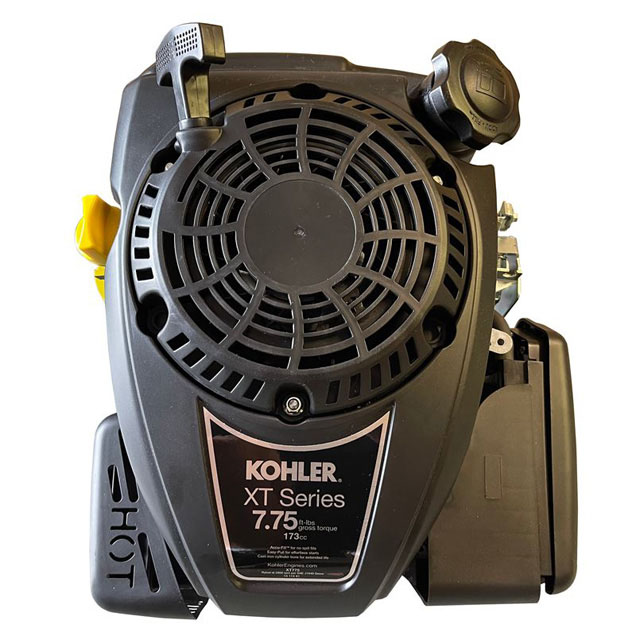

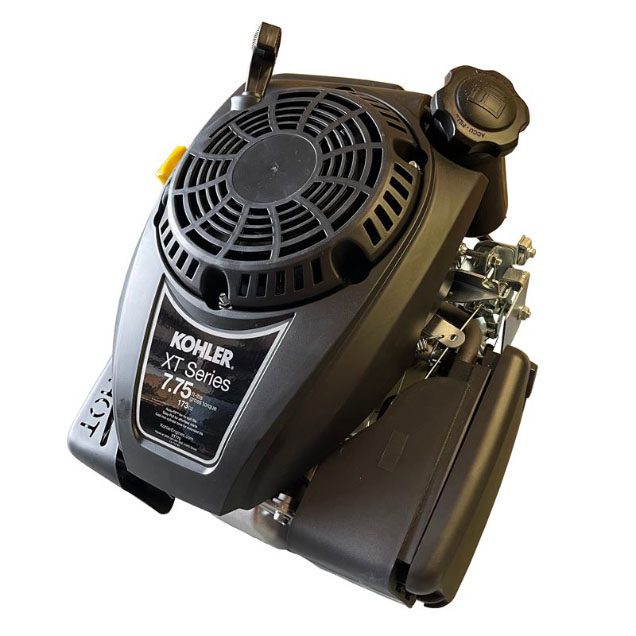

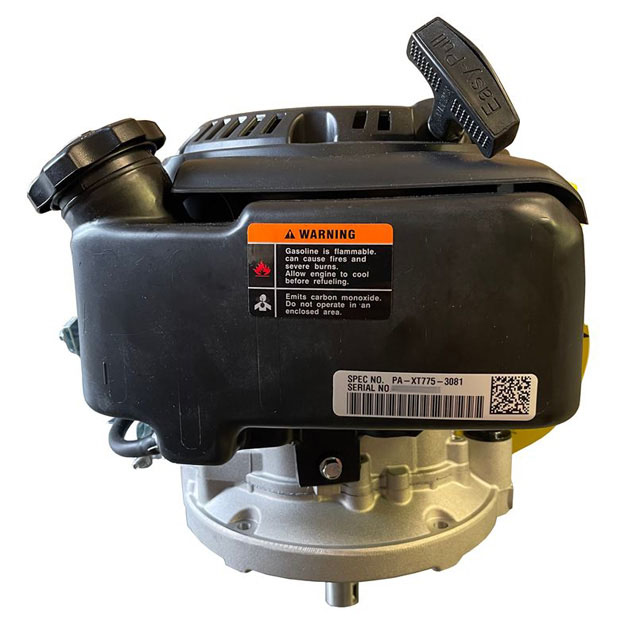

KOHLER Courage XT775 173cc Petrol Engine (3081 Model)

£216.67 ex.VAT
Sale Price:   £260.00 inc. VAT
RRP: £320.00

You Save: £60.00


Code: KOHLER-XT775-3081   Delivery from: £14.99

The KOHLER Courage XT775 is a world-class engine, from a trusted brand. Boasting 7.75 gross torque, it has powered our top-of-the-line 22" zero turn lawnmower for a number of years - only the best quality parts are suitable! This engine also offers a variety of other uses - please do not hesitate to get in touch should you want to discuss your options. This engine is the 3081 model XT775 engine; please click the "Specifications" tab for more information on this engine.

  • With KOHLER's Smart-Choke technology, you just need to pull and off you go - there's no choking, no priming and no flooded engine
  • KOHLER's Easy-Pull technology takes away the difficulty in firing up the engine
  • The Accu-Fill fuel tank makes for easy pouring and less spillage, with a 45% larger angled fuel neck
  • Consistent-Cut technology maintains engine speed for a cleaner turf cut, even in tough mowing conditions
  • Lightweight design


Engine (model): Kohler XT775 (3081 model)
Engine type: Four-cycle, single-cylinder, air-cooled, vertical shaft, petrol, OHV, with cast iron liner
J1940 Torque lbs. ft (Nm): 7.75 (10.5)
Displacement cu in (cc): 10.6 (173)
Bore in (mm): 2.7 (70)
Stroke in (mm): 1.8 (45)
Compression Ratio: 8.5:1
Dry Weight lbs (kg): 26.9 (12.2)
Oil Capacity (L): 0.6
Lubrication: Splash
Dimensions (L x W x H) cm.: 50 x 41 x 40
Backpressure Limit: 40
J1995 Torque lbs ft (Nm): 7.46 (10.11)
J1995 Rated Speed (RPM): 2800


Write a review

Customer Reviews

Matt Cooke - 02/06/2020

Fantastic quality

Titan managed to get this engine to me within 24 hours in perfect condition. I was able to install it pretty quickly... The only thing that caught me out was the bolts used are thread forming so dont panic when you see no threads on the new engine block. Thanks for the great service Titan


Ease of Use:


Build Quality:
