Video Guide: How do I replace the Line in the Easy-Load Bump Head?

We have produced a specific video guide showing how to reload the line in our bump heads efficiently.

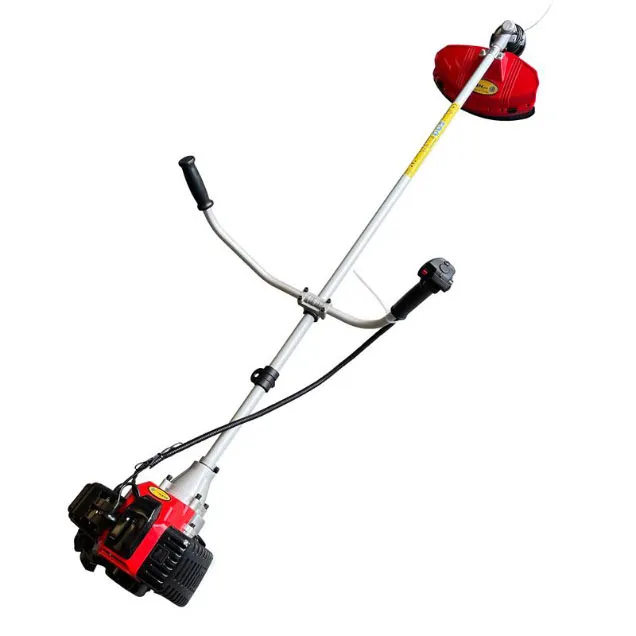

TP260 & TP430 Petrol Strimmer FAQ

Q: Technical: What is the 2-Stroke Fuel Mix Ratio?

The fuel mix ratio for both the TP260 and TP430 brushcutters is 30:1 (30 parts petrol to 1 part 2-stroke oil).

Q: Technical: What Grease should I use for the Gear Case?

We recommend using high-temperature lithium grease to lubricate the gear case.

Q: Technical: What are the full engine and drive specifications for the TP430?

The TP430 features a Diaphram Rotary Valve carburetor, Electronic Ignition, 1:1.33 reduction ratio, and spiral gear transmission.

Q: Technical: What are the shipping weights and box dimensions?

The machine is shipped in two separate boxes. The pole box weighs 3.6kg gross, and the engine box weighs 6.7kg gross.

Essential support and advice for the TP430 and TP260 Brushcutters. Renowned for their durability and one-piece shaft design.

SAFETY WARNING: Always ensure the engine is switched off and cool and the spark plug is disconnected before performing any maintenance or line changes.

Can't find the answer? Email techsupport@titan-pro.co.uk

Jump to: General Questions Usage & Maintenance Technical Specs

General Questions

Where can I buy spare parts for these strimmers? +

Yes. We carry a comprehensive range of spares for both models. Please select your machine below to view the parts diagram:

TP430 (43cc) Spares TP260 (26cc) Spares

Video Demo: Watch the Strimmers in Action +

We have demonstration videos for both engine sizes available to view below:

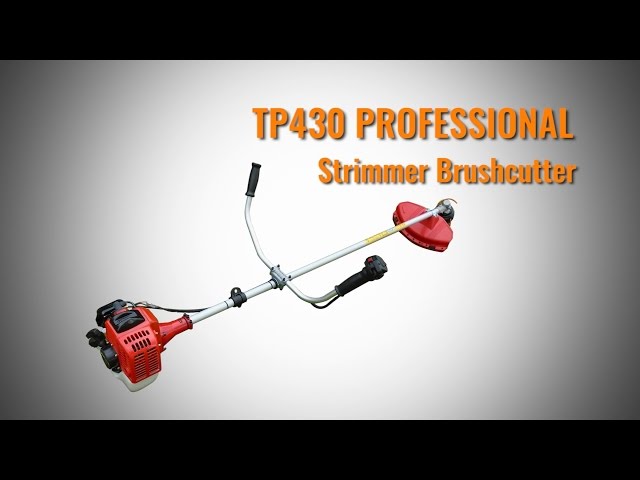

TP430 (43cc) Demo

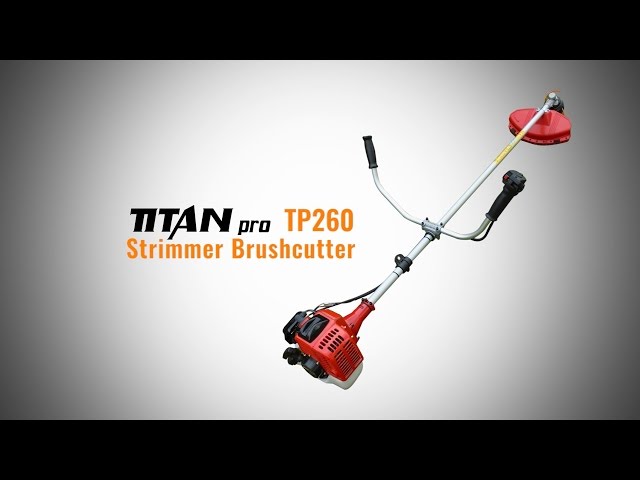

TP260 (26cc) Demo

Usage and Maintenance

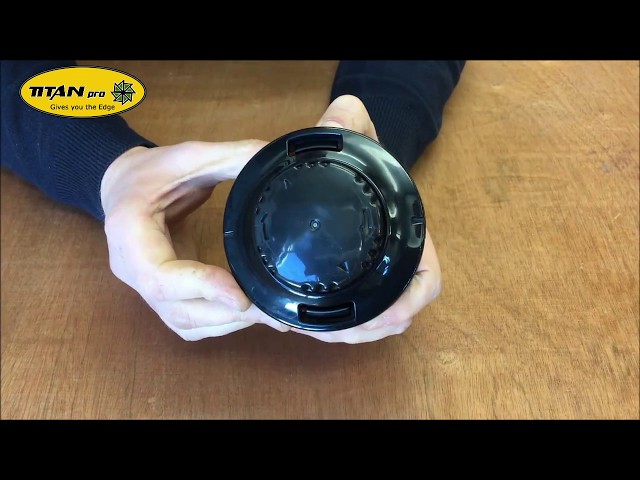

Video Guide: How do I replace the line in my easy-load bump head? +

We have produced a video guide showing exactly how to reload the line in our bump heads efficiently.

Watch "Speedrun" Version Buy Replacement Head

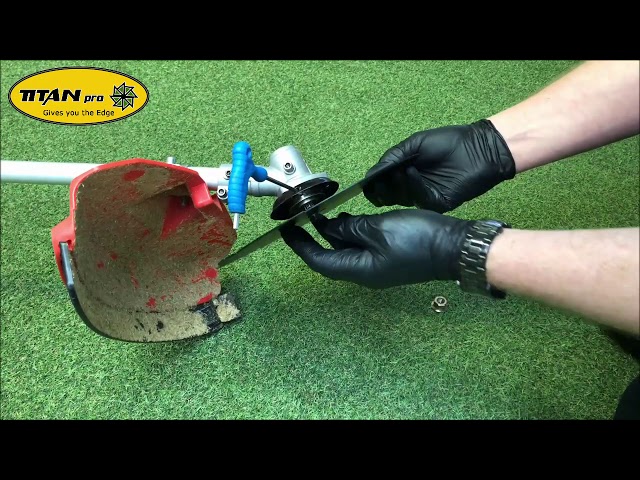

Video Guide: How do I switch between a blade and the bump head? +

Switching from strimmer wire to a metal blade (or vice versa) is simple. Watch our guide below:

Looking for blades? Click here to view our range of 3, 8, 40, and 80-tooth blades.

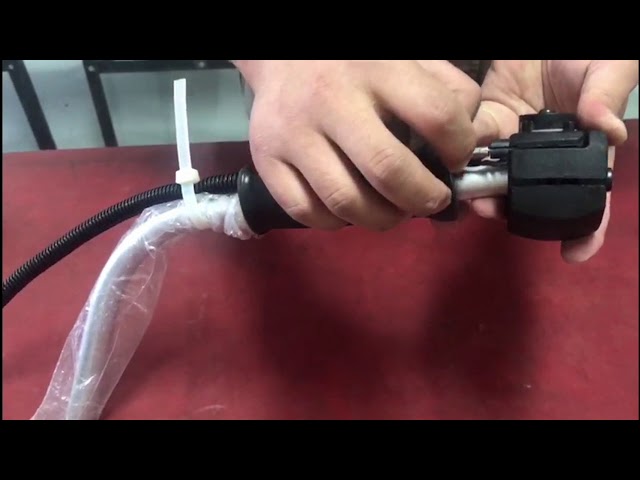

Video Guide: How do I set the throttle cable? +

If your throttle feels loose or unresponsive, it may need adjustment.

Technical Specs

Technical: What is the 2-stroke fuel mix ratio? +

The mix ratio for these strimmer/brushcutters is 30:1 (30 parts fresh unleaded petrol to 1 part 2-stroke oil).

Technical: What should I use to lubricate the gear case? +

We recommend using High Temperature Lithium Grease to lubricate the gear case. This should be checked regularly during the cutting season.

Technical: What are the full engine and drive specifications for the TP430? +

Specification	Detail
Carburetor Type	Diaphram Rotary Valve
Ignition Style	Electronic Ignition Without Contact
Reduction Ratio	1:1.33
Blade Rotation Direction	Counter-Clockwise (From the Operator's View)
Transmission Gearing	Automatic Centrifugal Clutch; Rigid Axle, Spiral Gear
Pole Dimensions	26mm diameter x 1500mm length
Rigid Axle Length	1530mm

Technical: What are the shipping weights and box dimensions? +

For transport purposes, the machine is shipped in two separate boxes:

Pole Box: 1655mm x 120mm x 120mm (Net Weight: 2.6KG / Gross Weight: 3.6KG)
Engine Box: 360mm x 300mm x 295mm (Net Weight: 4.3KG / Gross Weight: 6.7KG)

Still need technical support?

If you have a specific query regarding maintenance, parts, or operation, our team is here to help.

Email Technical Support
