Titan Pro 9HP Diesel Engine Single Cylinder

Maximus Warranty
£415.83 ex.VAT
Sale Price:   £499.00 inc. VAT
RRP: £718.80

You Save: £219.80

Code: TP186FBE   Delivery from: £15.99

Frequently Bought Together

Add a Pair of Leather Work Gloves for only £7.99
Add to Basket

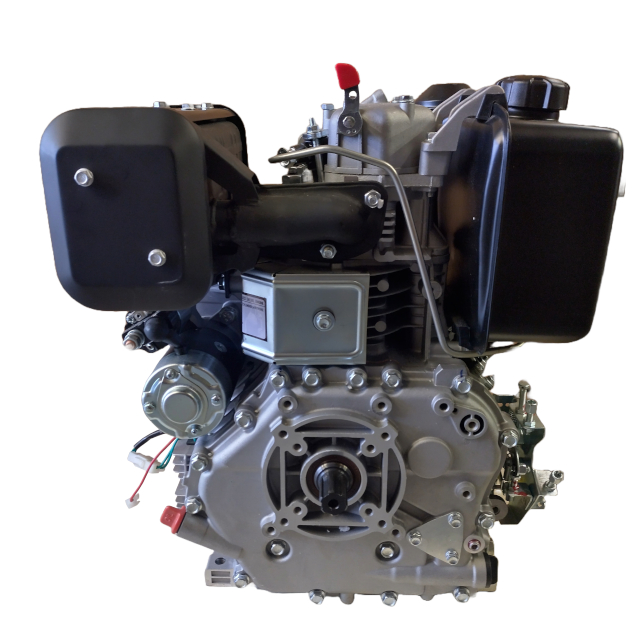

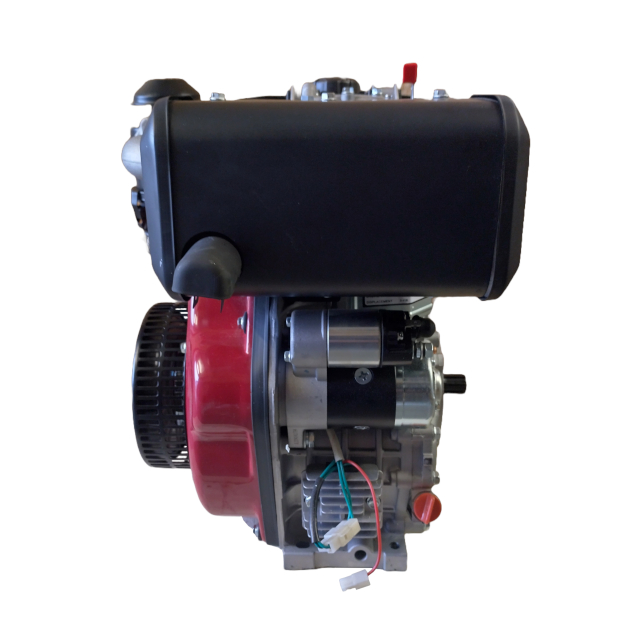

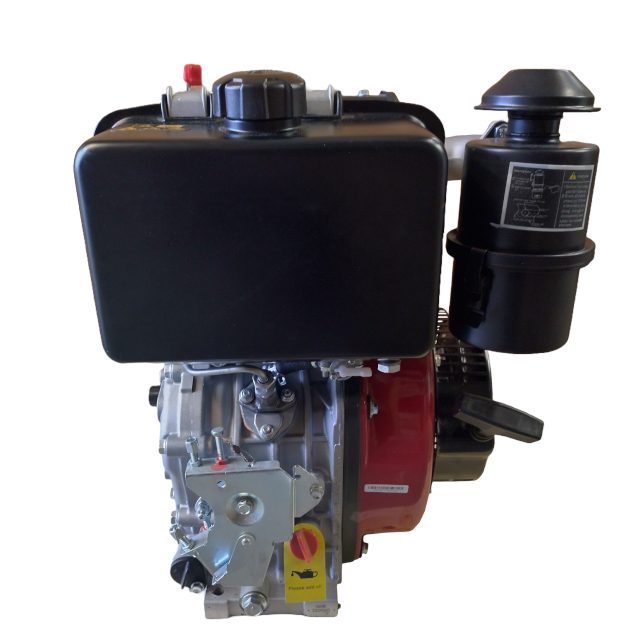

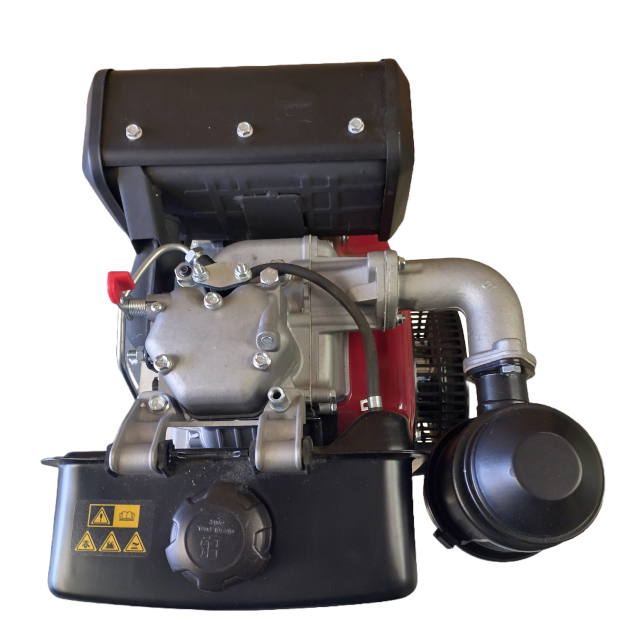

This is a super little 9HP diesel engine with an easy pull start. It has a great power/weight ratio, but is also incredibly reliable.

We use these engines on our range of tillers and rotavators, including the TP1100BE-6 diesel tiller, but these are adaptable and can be used in a variety of applications.


Model: TP186FBE
Type: Single-Cylinder, Vertical 4-Stroke, Forced Air-Cooled Engine
Displacement: 0.418
Max. Power: 9.5HP
Rated Theoretical Power: 8.5HP
Combustion System Mechanical Fuel Injection
Bore x Stroke 86 x 70
Engine Rotation Speed: 3600/1800
Direction of Revolution: Anticlockwise (from PTO side)
Valve Clearance: 0.1-0.15
PTO (Power Take off) Shaft Crankshaft or Camshaft (Camshaft PTO RPM is 1/2c Crankshaft)
Fuel Tank Capacity: 5.5L
Oil Capacity: 1.65L
Fuel/Oil: 0# in Summer, -10# or-20# in Winter/SAE 10W30
Starting Model: Recoil Start
Net Weight: 48KG
Dimensions: 417 x 441 x 494
