Genuine OEM Replacement Blade
Restore aggressive soil-breaking performance to your heavy-duty machinery with these OEM replacement Tiller Tines. Engineered explicitly for the Titan Pro TP1100BE-6 9HP Diesel Tiller Rotavator, these replacement blades are forged from hardened steel to easily slice through hard-packed clay, turf, and rocky terrain. Over time, worn or bent tines reduce your rotavator's efficiency and increase engine strain—replacing them ensures a crisp, professional seedbed finish.

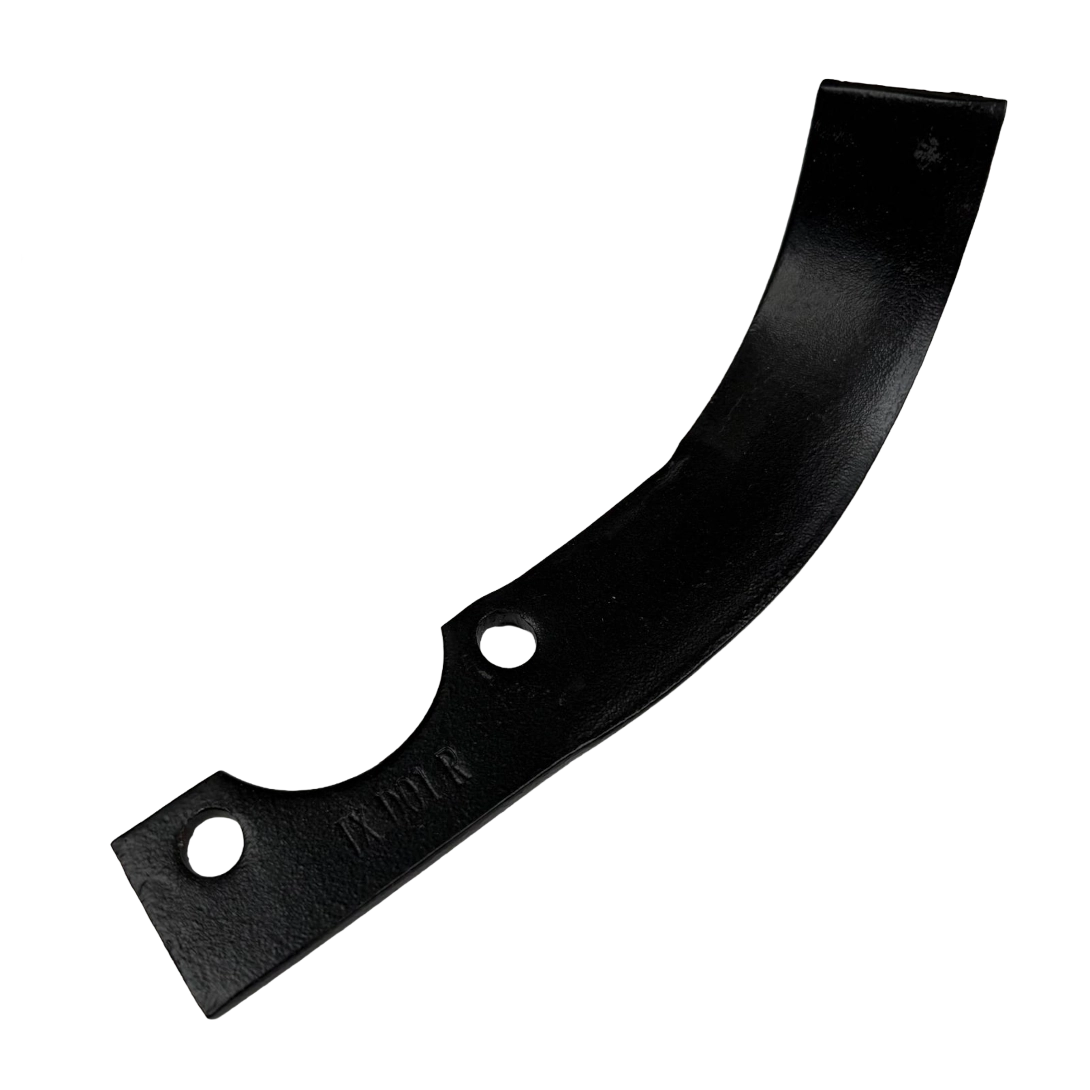

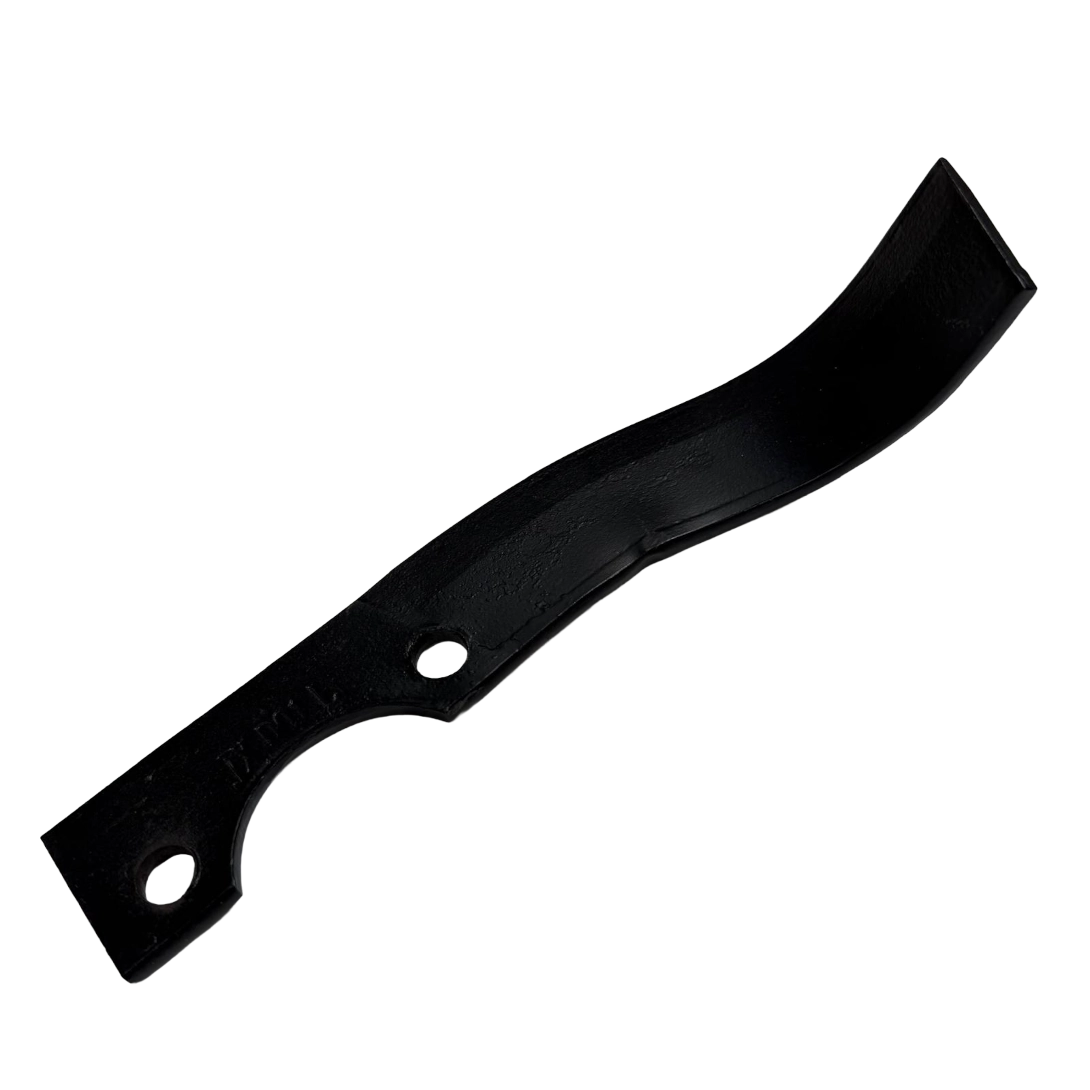

Please Note: These tines are sold individually to let you replace exactly what you need. Because they are directional, they are handed as Left or Right variations. Please verify the direction of the curve you require and choose the appropriate option from the dropdown menu before adding to your basket.
Hardened Steel
Manufactured to premium OEM toughness specs to resist impact wear and bending in heavy soils.
Sold Individually
Cost-effective repairs—only buy and replace the exact Left or Right tines you need.
Free UK Delivery
Fast, free shipping is included to all standard UK postcodes.
Titan Pro Tech Tip: Setting Up Your Sided Tines!
When installing new blades onto your tine bars, pay close attention to the orientation. The tines alternate on the shaft: one right-handed tine curls up, followed by a left-handed tine curling down. Ensure you secure the high-tensile mounting bolts tightly. It is highly recommended to coat the rotavator drive shaft with grease before sliding the tine assemblies back into place, which prevents the hubs from seizing over the winter!
Machine Category
View our full range of parts for your 9HP diesel machine.
| Technical Specifications |
| Product Type |
Replacement Rotavator / Tiller Digging Tine |
| Model Suitability |
Titan Pro TP1100BE-6 Diesel Tiller |
| Related Machine Spares |
View All TP1100BE-6 Spares |
| Purchase Unit |
Sold Individually (1x Tine) |
| Orientation Variants |
Left-Handed or Right-Handed (Selectable Config) |
| Hole Diameter |
11.60mm |
| Shortest Distance Between Holes |
58.70mm |
| Tine Thickness |
5.60mm |
| Weight (per Tine) |
341g |
| Colour |
Black |
| Condition |
New |
| Delivery Cost |
Free (UK Postcodes) |
