Genuine OEM Replacement Parts

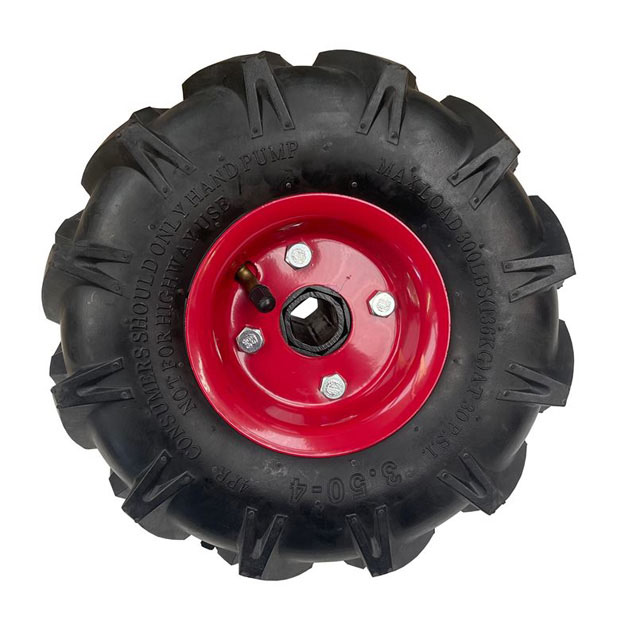

Genuine replacement Rear Wheels suitable for the Titan Pro TP500 Petrol Tiller Rotavator.
Supplied as a complete pair, these genuine replacement rear wheels feature integrated hexagonal drive axles designed to replace worn, punctured, cracked, or damaged original wheels. Ideal for restoring smooth machine transit, correct wheel alignment, and keeping your TP500 ready for work in the garden or allotment.
Titan Pro Tech Tip: Hexagonal Wheel Shaft Sizing & Fitting
These wheels feature dedicated hex drive hubs designed to slide directly onto the TP500 drive axle. Key hub measurements are: 280mm overall wheel diameter (including tyre), 25.60mm point-to-point hex diameter, 23.40mm flat-to-flat hex diameter, and an approximate 130mm shaft length. Before sliding the new shafts onto the axle, clean away packed mud and grit, apply a thin coat of multi-purpose grease to prevent binding, and align the retaining pin holes carefully before securing with split pins.
Constructed with durable steel rims in classic Titan Pro red and rugged black tread tyres, these genuine assemblies deliver excellent traction across loose and muddy soil.
Key Features:
• Genuine replacement Rear Wheels and Hex Axle Hubs
• Suitable for the Titan Pro TP500 Petrol Tiller Rotavator
• Supplied as a complete pair (Left & Right wheels included)
• Direct bolt-on replacement for worn or damaged original wheels
• 280mm wheel diameter including heavy-duty deep-tread tyres
• Precision hex drive fit (25.60mm point / 23.40mm flat)
• Approx. 130mm shaft length for secure frame clearance
• Eye-catching Black/Red factory color combination
• Genuine Titan Pro replacement parts
Precision Hex Hub Fit
Pre-sized 23.40mm (flat) / 25.60mm (point) internal hex hub prevents shaft slippage during transport.
Rugged 280mm Wheels
Heavy-duty 280mm diameter deep-tread tyres mounted on steel red rims for effortless maneuverability over rough ground.
Free UK Delivery
These replacement rear wheels come with free delivery directly to all standard UK postcodes.
Please note: Wheel assemblies are packaged securely in protective heavy-duty cartons to protect rim paint, rubber treads, and hex shaft ends during transit.
| Technical Specifications |
| Product Type |
Replacement Rear Wheels & Hexagonal Axle Shaft Assemblies |
| Model Suitability |
Titan Pro TP500 Petrol Tiller Rotavator |
| Quantity Included |
2 x Wheels (1 Pair) |
| Wheel Diameter (With Tyre) |
280mm |
| Hex Shaft Dia (Point-to-Point) |
25.60mm |
| Hex Shaft Dia (Flat-to-Flat) |
23.40mm |
| Shaft Length |
Approx. 130mm |
| Colour / Finish |
Black Tyre / Red Steel Rim |
| Condition Status |
New |
| Delivery Cost |
Free (All UK Postcodes) |
