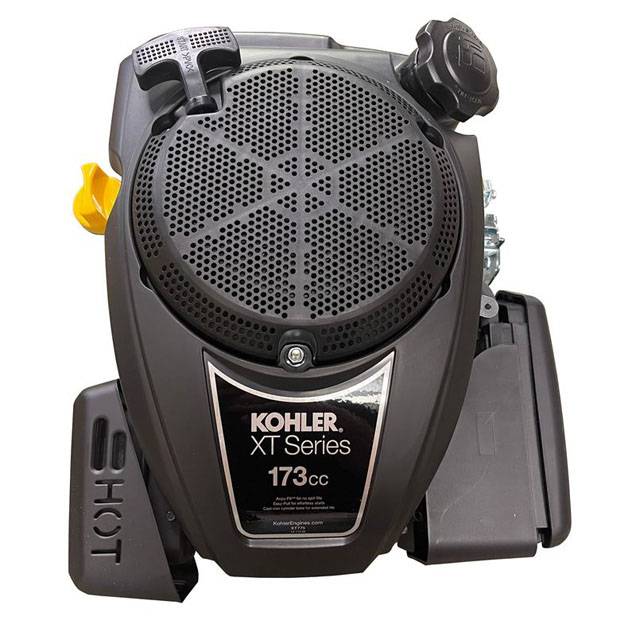

KOHLER XT775 173cc Petrol Four Stoke Engine (XT Series - 3024 Model)

£216.67 ex.VAT
Sale Price:   £260.00 inc. VAT
RRP: £320.00

You Save: £60.00

Code: KOHLER-XT775-3024   Delivery from: £14.99

The KOHLER XT775 is a world-class engine, from a trusted brand. Boasting 7.75 gross torque, it powers our top-of-the-line 22" zero-turn lawnmower - only the best quality parts are suitable! This engine also offers a variety of other uses - please do not hesitate to get in touch should you want to discuss your options. This engine is the 3024 model XT Series XT775 engine; please click the "Specifications" tab for more information on this engine.

  • With KOHLER's Smart-Choke technology, you just need to pull and off you go - there's no choking, no priming and no flooded engine
  • KOHLER's Easy-Pull technology takes away the difficulty in firing up the engine
  • The Accu-Fill fuel tank makes for easy pouring and less spillage, with a 45% larger angled fuel neck
  • Consistent-Cut technology maintains engine speed for a cleaner turf cut, even in tough mowing conditions
  • Lightweight design


Engine (model) Kohler XT775 (3024 model)
Engine type: Four-cycle, single-cylinder, air-cooled, vertical shaft, petrol, OHV, with cast iron liner
J1940 Torque lbs. ft (Nm): 7.75 ()
Displacement cu in (cc): 10.6 (173)
Bore in (mm): 2.7 (70)
Stroke in (mm): 1.8 (45)
Compression Ratio: 8.5:1
Dry Weight lbs (kg): 26.9 (12.2)
Oil Capacity U.S. quarts (L): 0.6 (0.6)
Lubrication: Splash
Dimensions (L x W x H) cm.: 50 x 41 x 40
Backpressure Limit: 40
J1995 Torque lbs ft (Nm): 7.46 (10.11)
J1995 Rated Speed (RPM): 2800
