Genuine OEM Replacement Part
Maintain the hydraulic performance of your log splitter with this genuine replacement Seal Kit, designed specifically for the Titan Pro 7 Ton Electric Log Splitter.

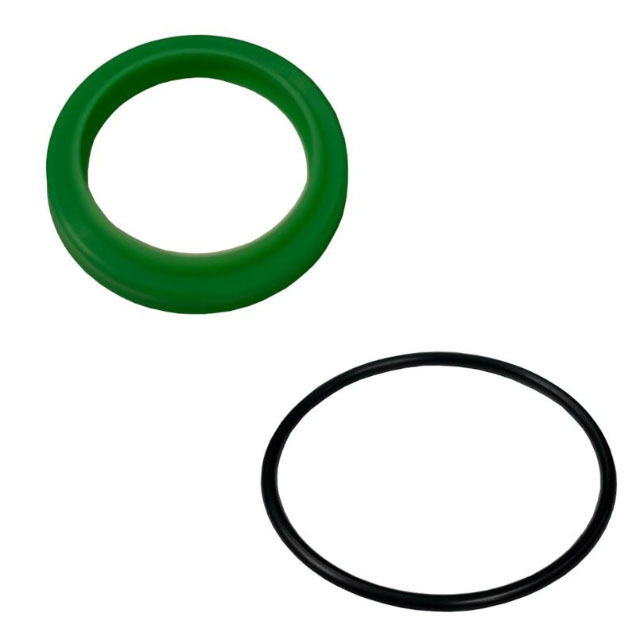

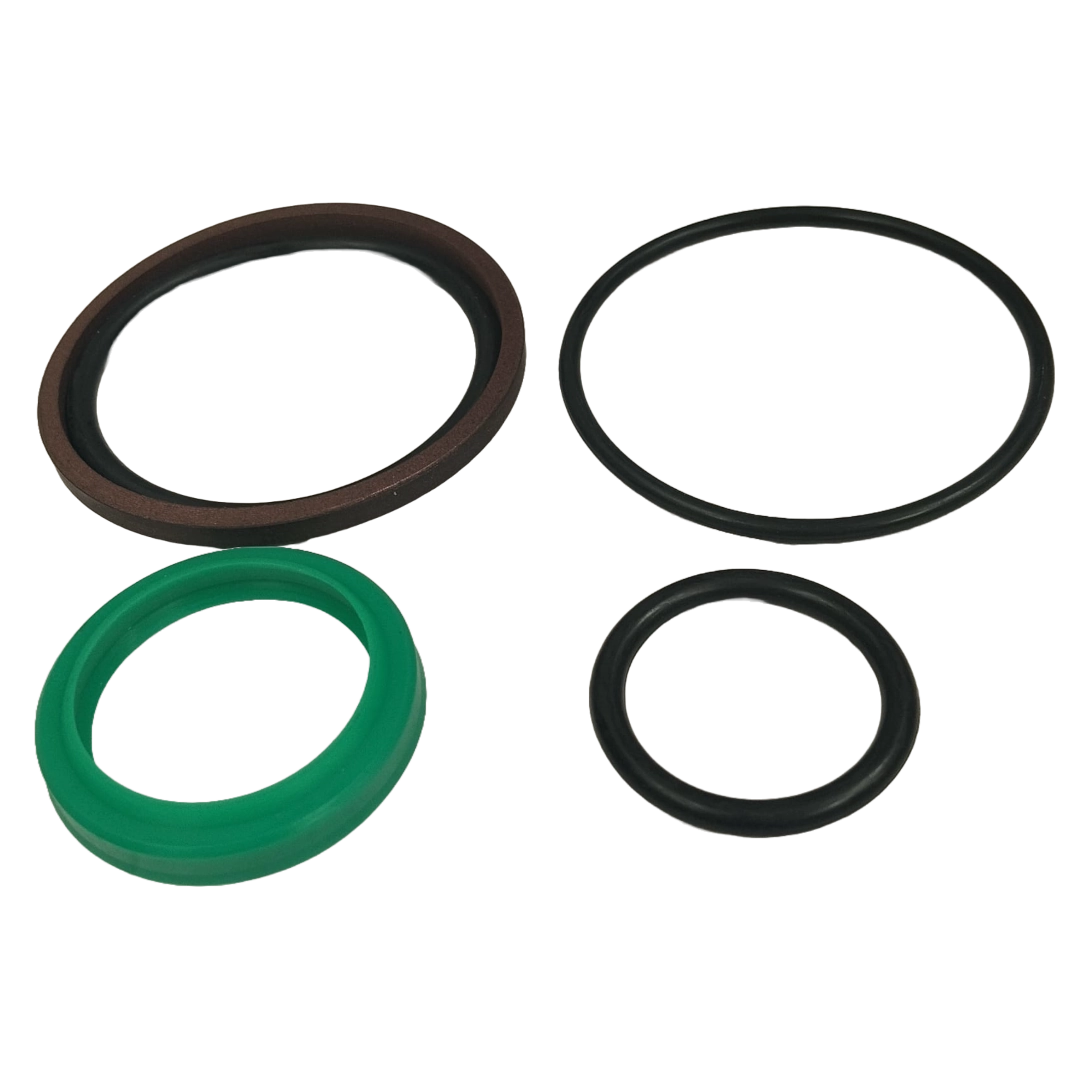

This comprehensive kit contains five replacement seals & gaskets for the hydraulic cylinder assembly:

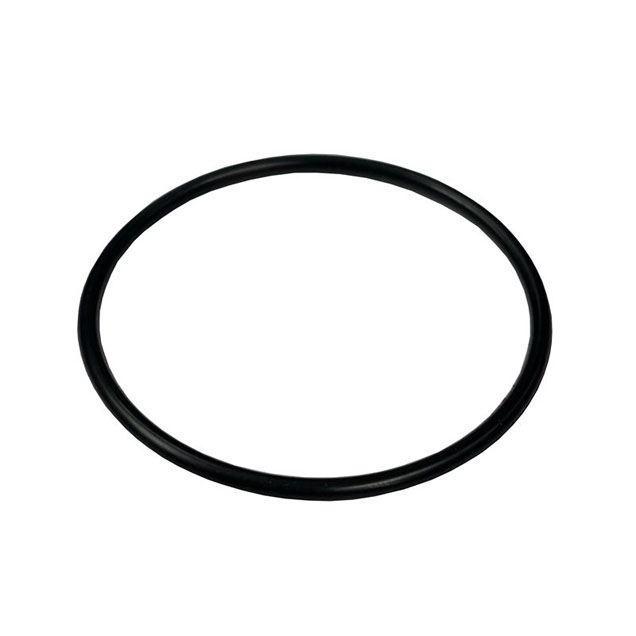

• Internal rear casting O-ring (50 x 2.65mm)

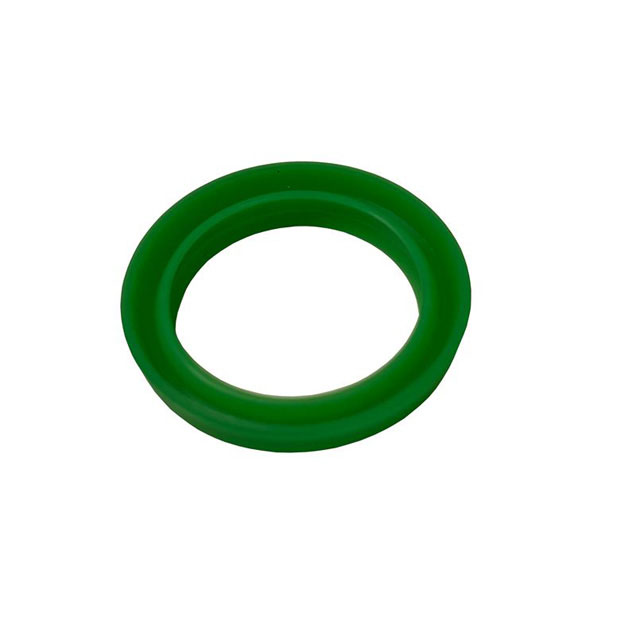

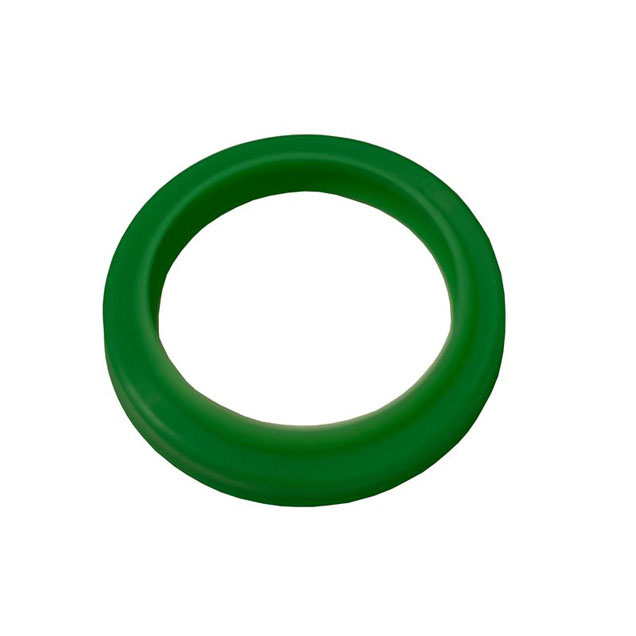

• Piston rod seal
• Medium black nitrile O-ring
• Small black nitrile O-ring
• Copper sealing crush gasket
Replacing worn or damaged seals can help prevent hydraulic fluid leaks and maintain the correct pressure within the system, helping your log splitter continue to operate efficiently and reliably.
Titan Pro Tech Tip: Hydraulic Seal Installation & System Refill
Degraded hydraulic seals cause fluid weepage and internal pressure bypass, drastically reducing splitting power. When fitting this 5-piece seal kit, thoroughly clean all internal oil grooves, valve ports, and casting faces to remove debris, metallic particles, or dried hydraulic sludge. Coat the new elastomeric O-rings and rod seal with fresh ISO VG 22 or 32 hydraulic oil prior to installation to ensure smooth seating without tearing or twisting. Always replace the copper sealing washer during reassembly to ensure a pressure-tight metallic crush seal.
Ideal for routine maintenance or repairing a hydraulic system that has developed a leak, this genuine Titan Pro seal kit provides the replacement seals required for the relevant components.
Key Features:
• Genuine replacement Seal Kit for Titan Pro 7 Ton Electric Log Splitter
• Includes five replacement hydraulic seals and gaskets
• Includes internal rear casting O-ring (50 x 2.65mm)
• Includes piston rod seal
• Includes additional medium & small black nitrile O-rings
• Includes copper sealing crush gasket
• Helps prevent hydraulic oil leaks
• Helps maintain correct hydraulic pressure
• Ideal for maintenance and complete hydraulic cylinder repairs
• Genuine Titan Pro replacement parts
Complete 5-Piece Kit
Contains internal rear casting O-ring, piston rod seal, two auxiliary nitrile O-rings, and a copper sealing washer for a full overhaul.
Precision Dimensions
Features an exact 50mm x 2.65mm internal main O-ring profile along with factory-matched O-rings for high-pressure sealing.
Free UK Delivery
This replacement standalone hydraulic seal kit includes fast, free delivery directly to all standard UK postcodes.
Please note: Replacement rubber, nitrile, and copper seals are packaged securely in protective mailers to safeguard sealing lips and profiles from contamination or damage during transit.
| Technical Specifications |
| Product Type |
Replacement Hydraulic Cylinder, Piston Rod & Valve Seal Kit |
| Model Suitability |
Titan Pro 7 Ton Electric Log Splitter (TPLS7T Series) |
| Kit Contents |
1 x Rear Casting O-Ring (50x2.65mm), 1 x Piston Rod Seal, 1 x Medium Nitrile O-Ring, 1 x Small Nitrile O-Ring, 1 x Copper Gasket |
| Total Quantity |
5 Seals & Gaskets |
| Internal Main O-Ring Dimensions |
50mm x 2.65mm |
| Material / Finish |
Black Nitrile Elastomer / Copper Metal Gasket |
| Condition Status |
New |
| Delivery Cost |
Free (All UK Postcodes) |
Mark Turnbull - 26/08/2025
Verified
Internal seal kit
Have had the 7ton log splitter for a number of years and cant fault it. The internal seals are the first major problem I have had. My only comment would be to have some basic disassembly instructions available on the web site. I am lucky my background is in engineering. Other than that that great
