Non-OEM Precision Tuning Tool
A non-OEM specialised 2-Stroke Carburettor Adjustment Tool, designed to adjust fuel-air mixture screws on high-street garden machinery, strimmers, brushcutters, chainsaws, and multi-tools (including selected TTL488GDO and TTL530GBC models).
Fine-tune engine idle and high-speed mixture settings on 2-stroke small engines with this ergonomic adjustment tool. Because small engine manufacturers fitted multiple carburettor brands (such as Walbro, Zama, Ruixing, and Huayi) across different production years, screw head profiles vary from machine to machine. We stock fourteen distinct tip profiles - ranging from Pac-Man and Splined to Single D and A-Circle - ensuring you can select the exact tool end required for your carburettor.
Titan Pro Tech Tip: How to Select the Correct Tool Profile
Please inspect your carburettor before ordering! Machine model numbers alone do not guarantee a specific screw profile, as manufacturers altered carburettor designs across production runs.
1. Look closely at the High (H) and Low (L) mixture adjustment screws on your carburettor.
2. Match the head shape and diameter against the profile diagram photos shown on this listing.
3. Select the matching profile name (e.g., Pac-Man, Single D, 21-Teeth Splined, Acircle) from the dropdown menu above before adding to your basket.
Constructed with durable steel shafts and molded ergonomic handles, these precision tools allow incremental 1/8th-turn adjustments without slipping or damaging anti-tamper screw heads.
Key Features:
• Universal non-OEM 2-stroke carburettor adjustment tool
• Available in 14 distinct tip profiles to fit virtually all 2-stroke machinery on the UK market
• Compatible with selected TTL488GDO, TTL530GBC, and various high-street strimmer & multi-tool brands
• Heat-treated steel shaft with comfortable ergonomic grip handle
• Essential tool for clearing engine bogging, adjusting idle speed, and setting fuel mixture
• Non-OEM spare part sourced to keep your garden machinery running smoothly
• Includes free UK delivery to all postcodes
14 Tool Styles
14 specialized tip shapes available to match Pac-Man, Splined, D-Type, Hex, and A-Circle screws.
Visual Verification
Compare your carburettor screw head to our photo guide to select the exact matching tool from the dropdown menu.
Free UK Delivery
This Carburettor Adjustment Tool includes free delivery directly to all standard UK postcodes.
Please note: While we offer non-OEM replacement tools to help get your equipment running, we cannot offer technical engine tuning advice. Please consult your machinery service guide or a qualified technician for tuning specifications.
| Technical Specifications |
| Product Type |
Non-OEM 2-Stroke Carburettor Adjustment Screwdriver |
| Model Suitability |
Universal fit across 2-stroke engine machinery (including TTL488GDO & TTL530GBC) |
| Material |
Steel Shaft with Plastic Ergonomic Handle |
| Condition Status |
New |
| Delivery Cost |
Free (All UK Postcodes) |
| Available Tool Tip Profiles (Select via Dropdown) |
| 1. 21-Teeth Splined |
Multi-tooth splined socket for 21-spline anti-tamper screws |
| 2. 7-Teeth Splined |
Multi-tooth splined socket for 7-spline anti-tamper screws |
| 3. Pac-Man |
Standard Pac-Man single-notch profile (ID approx. 4.87mm) |
| 4. Small Pac-Man |
Miniature Pac-Man single-notch profile (ID approx. 1.67mm) |
| 5. Single D |
Standard D-shaped single flat edge socket |
| 6. Small Single D |
Miniature D-shaped single flat edge socket |
| 7. Double D |
Dual flat edge oval / Double-D socket |
| 8. Acircle |
Standard offset circular pin / A-Circle profile |
| 9. Small Acircle |
Miniature offset circular pin / A-Circle profile |

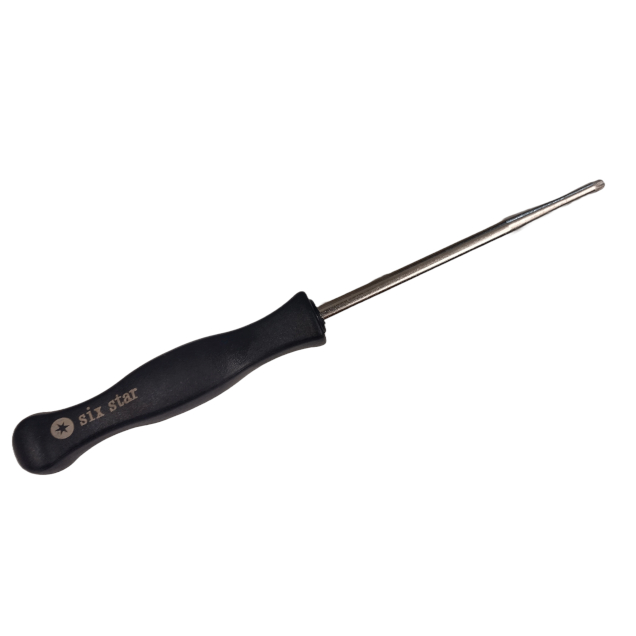

| 10. Six Star |
6-Point Torx / Star style driver tip |
| 11. Hexagon |
Internal hex socket tip |
| 12. Outer Hexagon |
External hex driver shaft |
| 13. - Shaped |
Flat-head / slotted blade driver tip |
| 14. Screw |
Threaded / triangular pointed tip |
