Genuine OEM Replacement Part
Restore reliable hydraulic performance with this genuine replacement Internal Hydraulic Cylinder, designed for Titan Pro electric log splitters.
The internal cylinder is a key component of the hydraulic system, helping generate and transfer the force required during the log-splitting cycle. If the original cylinder has become worn, damaged or is no longer operating correctly, this genuine replacement can help restore smooth and dependable machine performance.
Manual Part Reference & Specifications:
This component corresponds to Part #1 in older Titan Pro manuals and Part #23 in current manuals. Key measurements: 743mm length, 65mm outer diameter, and 59.5mm internal bore. Please check your manual schematic before ordering.
Titan Pro Tech Tip: Internal Cylinder Bore Care & Fluid Priming
Internal cylinder walls must remain completely free of deep scratches or debris to maintain a high-pressure seal with the piston head. When replacing the internal cylinder tube, inspect all internal rubber seals and O-rings for wear. Ensure the cylinder casing is flushed clean of any metal particles or old oil sludge, refill with fresh ISO VG 22 or 32 hydraulic fluid, and open the air bleed screw during initial cycle testing to purge trapped air from the cylinder chamber.
Manufactured to precise specifications, this heavy-duty 2.95kg replacement cylinder is designed to provide a reliable fit and withstand the demands of regular log splitting.
Key Features:
• Genuine replacement Internal Hydraulic Cylinder for Titan Pro electric log splitters
• Helps restore reliable hydraulic performance
• Provides the hydraulic force required for effective log splitting
• Ideal replacement for a worn or damaged cylinder
• Precision manufactured for a secure fit
• Durable construction for demanding use
• Genuine Titan Pro replacement part

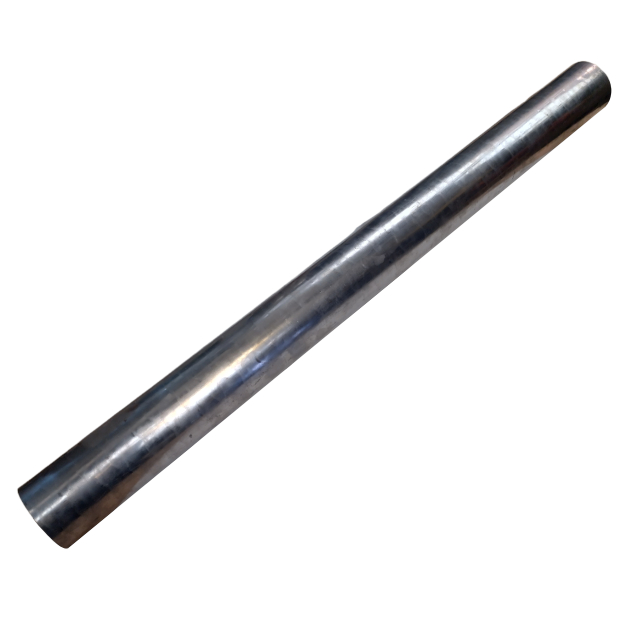

Precision Steel Barrel
Heavy-duty steel tube (2.95kg weight, 743mm length) built to contain intense internal hydraulic oil pressures during operation.
59.5mm Honed Internal Bore
Features a 65mm OD with a smooth 59.5mm honed internal finish designed for optimal piston ring sealing and ram extension.
Free UK Delivery
This replacement standalone internal hydraulic cylinder includes fast, free delivery directly to all standard UK postcodes.
Please note: Internal hydraulic cylinder barrels are packaged securely in heavy-duty protective mailing tubes to protect polished inner surfaces and end fittings during transit.
| Technical Specifications |
| Product Type |
Replacement Internal Hydraulic Pressure Cylinder Barrel |
| Model Suitability |
Titan Pro Log Splitters (TPLS5T, TPLS6T, TPLS7T, TPLS7T + Stand) |
| Manual Part Number Reference |
Part #1 (Old Manual Style) / Part #23 (Current Manual Style) |
| Cylinder Overall Length |
743mm |
| External Diameter (OD) |
65mm |
| Internal Bore Diameter (ID) |
59.5mm |
| Component Weight |
2.95kg |
| Colour / Finish |
Silver Protective Finish |
| Condition Status |
New |
| Delivery Cost |
Free (All UK Postcodes) |
