Genuine OEM Replacement Part

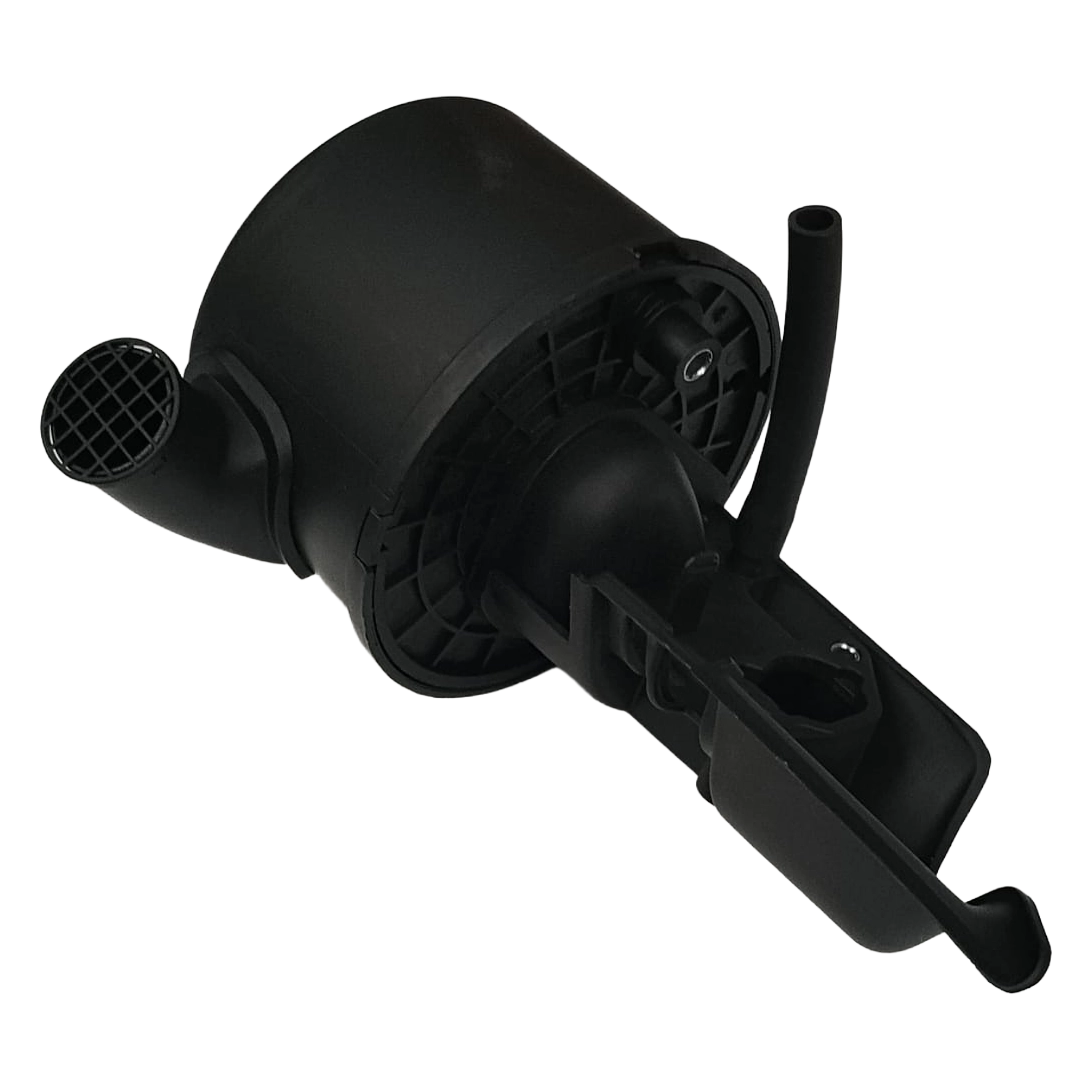

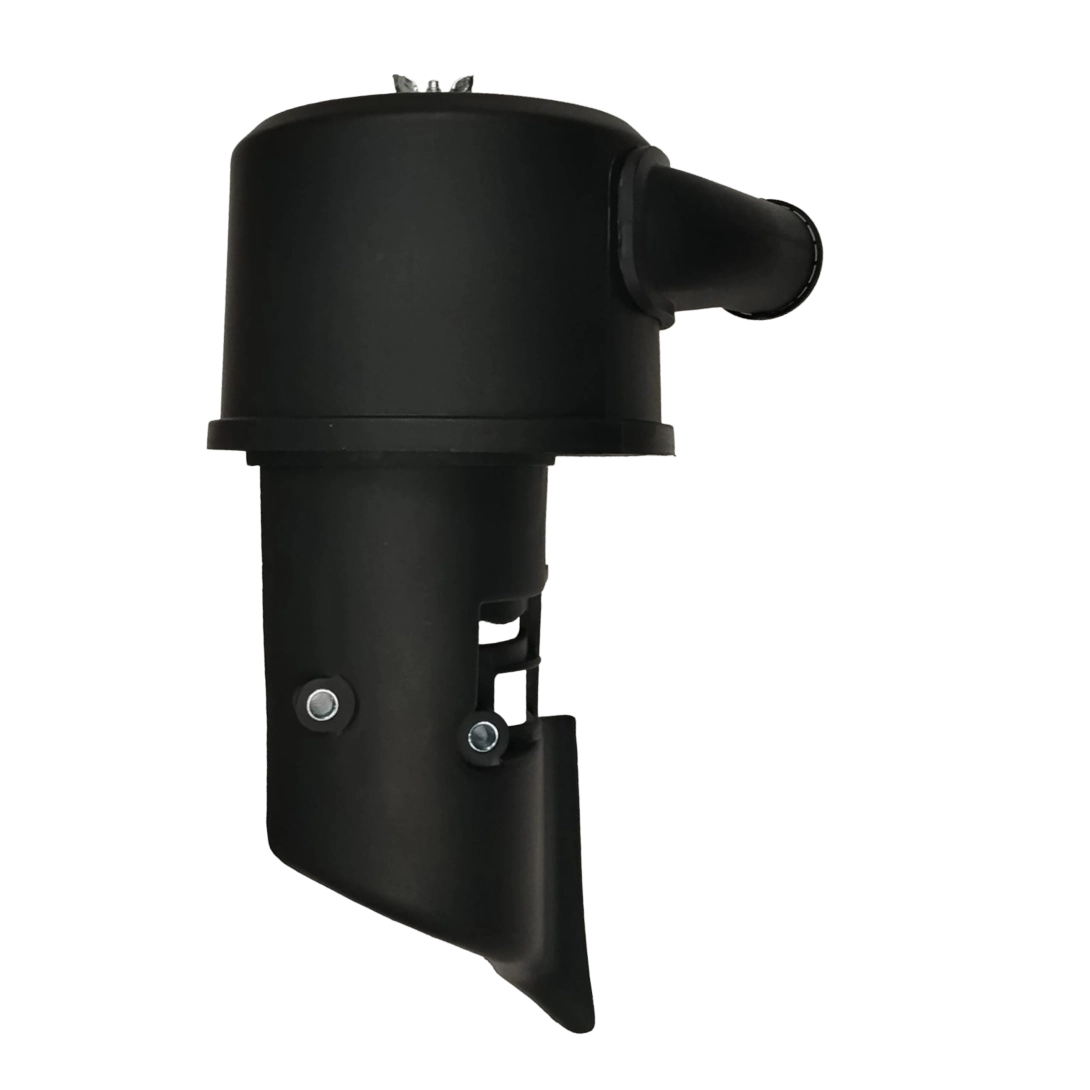

Restore optimum filtration efficiency and safeguard your engine against harsh environment wear with this genuine complete replacement Oil Bath Air Box and Filter Assembly, designed specifically for the Titan Pro TP690 Walk-Behind Field Topper Flail Mower.
Operating in thick fields, overgrown brambles, and uneven dense terrain means your engine requires maximum intake protection. This complete assembly houses the integrated heavy-duty internal filtration matrix and oil reservoir pool, catching fine airborne organic dust, seed chaff, and debris before it can ever reach the carburetor or cylinder bore. A cracked housing or a compromised sealing rim allows contaminated air bypass, leading to drop-offs in performance and rapid internal component scoring.
Titan Pro Tech Tip: Filling & Servicing Your Oil Bath Filter
Because flail mowers work in exceptionally high-dust environments, the oil reservoir at the base of this air box requires regular upkeep. When setting up this replacement unit, unclip the lower reservoir pan and fill it with fresh, clean engine oil (standard SAE 30 or 10W-30 is ideal) exactly up to the indicated "Oil Level" fill line marked on the casing. Never overfill the pan, as excessive oil can be sucked directly into the carburetor intake throat, causing heavy smoke and plug fouling. Check the basin every 8 to 10 operating hours, flushing away settled sludge and swapping in fresh oil to ensure continuous filtration security.
Manufactured to strict factory tolerances for an airtight connection, this complete drop-in assembly is built to withstand rigorous field clearing demands and deliver an extended engine service life.
Important Installation Note: This assembly is supplied as a complete air box unit containing the internal filter element structure. Engine oil for the lower filtration reservoir pan is sold separately and must be added prior to starting the machinery.
Key Features:
• Genuine replacement complete Oil Bath Air Box assembly for Titan Pro TP690
• Directly blocks field chaff, organic pollen, and fine dirt dust particles
• Complete assembly design includes lower oil pan reservoir and upper housing shell
• Supports stable engine volumetric intake airflow and smooth throttle management
• Essential replacement component for cracked, distorted, or leaking intake assemblies
• Heavy-duty, chemical-resistant construction for reliable outdoor performance
• Genuine Titan Pro OEM part to preserve engine warranty and longevity
Oil Bath Tech
Uses a liquid oil trap barrier to bind micro-particles that easily bypass standard dry paper element cartridges.
Airtight Flange
Precision-molded mounting base configuration to secure directly to your TP690 engine inlet face with zero air leaks.
Free UK Delivery
This replacement complete flail mower oil bath intake kit includes fast, free delivery directly to all standard UK postcodes.
| Technical Specifications |
| Product Type |
Complete Engine Oil Bath Air Box & Filter Assembly |
| Model Compatibility |
Titan Pro TP690 Walk-Behind Field Topper Flail Mower |
| Filtration Type |
Liquid Oil Bath Barrier System with Mesh Matrix |
| Housing Material |
High-Impact, Heat-Stabilized Engineered Polymer |
| Colour Finish |
Industrial Black |
| Condition |
New |
| Delivery Cost |
Free (UK Postcodes) |
