Genuine OEM Replacement Kit
Prevent drive system failure and eliminate catastrophic shaft slippage with this genuine OEM Drive Pulley Fixing Hardware Kit. Custom-bundled explicitly for the walking pulley drive connection on the Titan Pro TP690 Walk-Behind Field Topper Mower, this comprehensive 3-piece fastener pack includes the precise high-tensile hex bolt, heavy load-spreading washer, and the parallel drive shaft key steel insert block. Operating heavy clearing machinery across rough, uneven fields creates intense rotational vibrations that can fatigue original bolts or sheer hardware inserts over time.

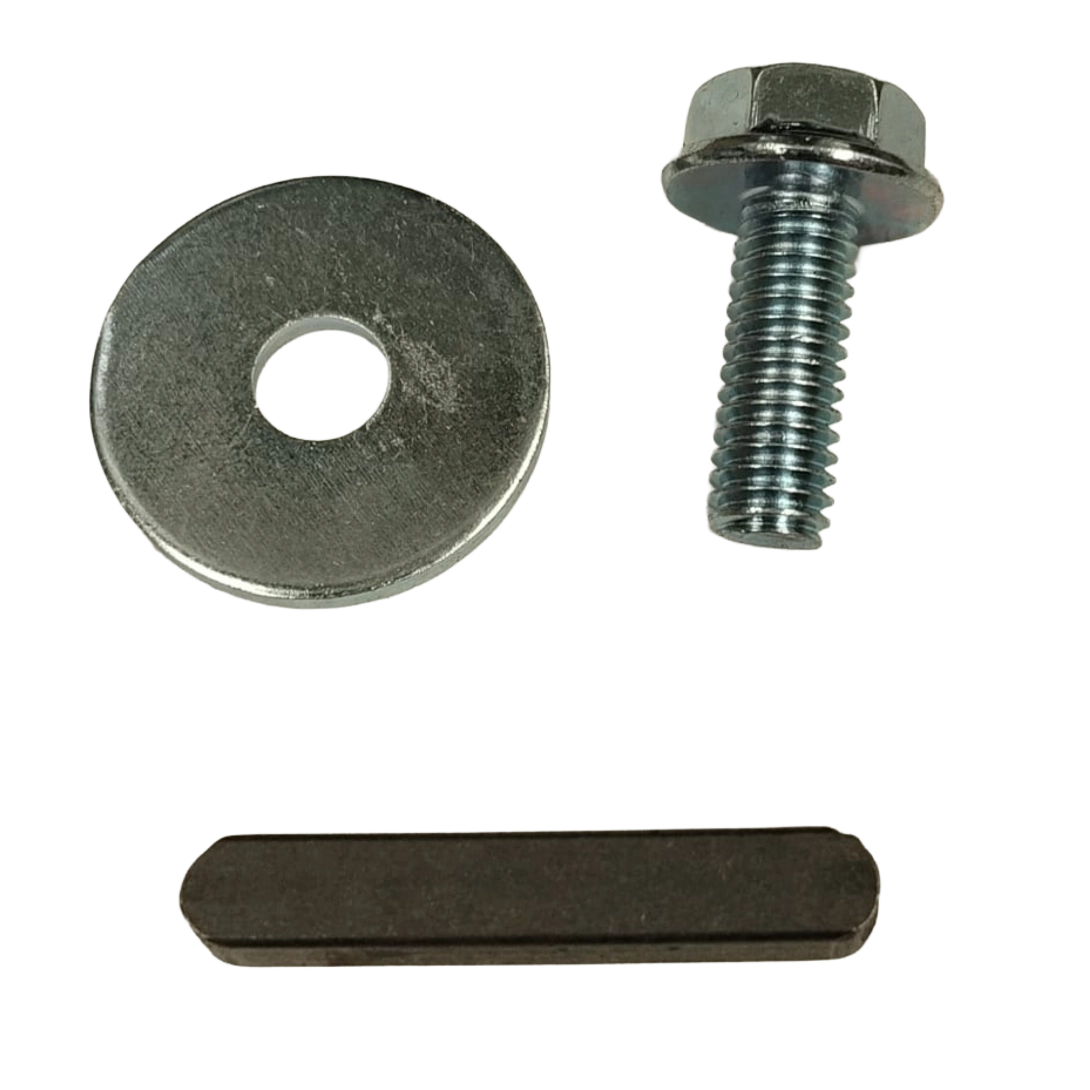

This complete multi-part hardware bundle includes the following manual-specified parts:
- Drive Pulley Key Steel (5x5x30) – (Tab 7, Part No. 28)
- Walking Pulley Washer (Size 6) – (Tab 7, Part No. 29)
- Drive Pulley Hex Bolt (M6x16) – (Tab 7, Part No. 30)
Titan Pro Tech Tip: Lock it Down for Good!
Because the ground-propelling system works under constant load cycles, it is vital that this hardware is mounted flawlessly. Before inserting your new square key steel block into the shaft groove, clean away any grease or metal flakes. When threading the M6 hex bolt back into the core axis of the shaft, we strongly advise applying a single drop of medium-strength thread-locking fluid (such as blue threadlock) onto the threads. This adds extra security against engine resonance shaking the bolt loose during tough field jobs!
Manufactured from premium heavy-duty high-tensile metal alloys, each component features a dark gray/metallic silver surface finish treatment for maximum corrosion and fatigue resistance.
Complete Fix Pack
All three items shown in your manual diagram pre-sorted together in one unified package.
High Tensile Alloys
Structural components engineered specifically to handle high-vibration power transfer.
Free UK Delivery
Fast, free shipping is included to all standard UK postcodes.
| Technical Specifications |
| Product Type |
Drive Pulley Installation Fastener Fixing Hardware Pack |
| Model Suitability |
Titan Pro TP690 Walk-Behind Field Mower |
| Kit Contents |
1x Hex Mounting Bolt (M6x16)
1x Walking Pulley Load Washer (Size 6)
1x Parallel Shaft Key Steel Insert (5x5x30) |
| Manual / Diagram Refs |
Tab 7 Schematic Diagram:
• Part No. 28 (Key Steel Block)
• Part No. 29 (Retention Washer)
• Part No. 30 (Threaded Bolt) |
| Related Machine Spares |
View All Flail Mower Spare Parts |
| Material Profiles |
High-tensile tempered steel and zinc structural metal configurations |
| Hardware Colours |
Dark Gray / Metallic Silver Surface Finish |
| Condition |
New Packaged Assembly |
| Delivery Cost |
Free (UK Postcodes) |
