Video Guide: How do I start, stop, and reverse the TP1100BE-6?

We have specific video guides covering the starting and stopping procedure. To reverse, ensure the machine is in neutral, pull the reverse lever, pull the bottom left-hand clutch lever in, and release the clutch slowly.

TP1100BE-6 Diesel Tiller Rotavator FAQ

Q: Do you carry spare parts for the TP1100BE-6?

Yes, we carry a full range of spare parts for the TP1100BE-6 and all other machines in the Titan Pro range.

Q: Video Demo: Can I see this 9HP rotavator in action?

Yes, you can watch our product demonstration video to see the diesel tiller breaking ground.

Q: What are the PTO attachment capabilities?

This model features an integrated PTO (Power Take-Off) designed to accommodate add-ons such as our specific rotavator attachment, a sickle bar, or a ridger/plough.

Q: What oil does the engine and gearbox require?

The TP186FBE diesel engine requires 1.65L of engine oil. The heavy-duty gearbox requires 1.8L of EP80w90 GL5 gear oil.

Q: What is the maximum tilling width and depth?

The steel tines are adjustable, allowing for a tilling width between 800mm and 1350mm. The digging depth operates between 150mm and 300mm depending on ground conditions.

Q: What warranty does this diesel tiller come with?

This machine is backed by a 3-Year Maximus Warranty for domestic usage, or a 1-Year Commercial Warranty for professional use.

Q: What are the detailed engine specifications for the TP1100BE-6?

The machine is powered by a heavy-duty 186FB single-cylinder, vertical, air-cooled, 4-stroke direct injection diesel engine. It features a displacement of 406cc (0.406L) with a bore and stroke of 86x70mm. The lubrication system utilizes a pressure splash mode.

Q: What are the tine speeds for the High and Low gears?

The rotavator features a versatile dual-range gearbox. In the High (H) auxiliary shift, the rotating speeds are 83 RPM (Reverse), 83 RPM (Forward Gear 1), and 145 RPM (Forward Gear 2). In the Low (L) auxiliary shift, the speeds are 24 RPM (Reverse), 24 RPM (Forward Gear 1), and 42 RPM (Forward Gear 2).

Q: Do you have assembly instructions available for this rotavator?

Yes, you can download our assembly guide containing pictures from the website. Alternatively, we offer a Gold PDI assembly package on new purchases where we build and test the machine for you.

The largest of our range of tillers and rotavators, the TP1100BE-6 combines great power with an integrated PTO to accommodate heavy-duty attachments.

SAFETY WARNING: Always turn off the engine before you follow any of the maintenance advice listed below.

Can't find the answer? Email techsupport@titan-pro.co.uk

Jump to: General & Specs Assembly Operation Guides

General Questions & Specs

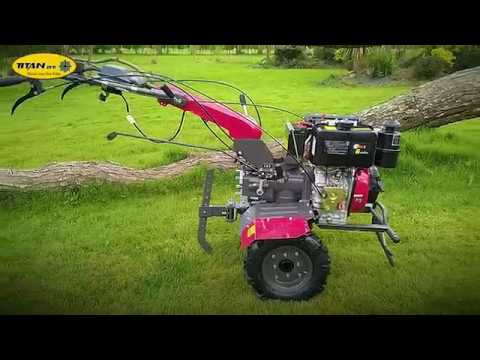

Video Demo: Can I see this 9HP rotavator in action? +

You can see this tiller in action in our product demonstration video below:

Do you carry spare parts for the TP1100BE-6? +

Yes, we carry spare parts for all machines in the Titan Pro range.

Browse TP1100BE-6 Spare Parts

What are the PTO attachment capabilities? +

This model features an integrated PTO (Power Take-Off) ready for your choice of attachments. It is designed to accommodate add-ons such as our specific rotavator attachment, a sickle bar, or a ridger/plough (attachments sold separately).

What oil does the engine and gearbox require? +

The TP186FBE diesel engine has an oil capacity of 1.65L. The heavy-duty transmission gearbox requires 1.8L of EP80w90 GL5 gear oil.

What is the maximum tilling width and depth? +

The steel tines are adjustable, allowing you to tackle narrower garden beds or expansive smallholdings. The tilling width ranges from 800mm to 1350mm.

The digging depth operates between 150mm and 300mm depending on the ground conditions.

What are the detailed engine specifications for the TP1100BE-6? +

The machine is powered by a heavy-duty 186FB single-cylinder, vertical, air-cooled, 4-stroke direct injection diesel engine. It features a displacement of 406cc (0.406L) with a bore and stroke of 86x70mm. The lubrication system utilizes a pressure splash mode.

What are the tine speeds for the High and Low gears? +

The rotavator features a versatile dual-range gearbox.

High (H) Auxiliary Shift: 83 RPM (Reverse) | 83 RPM (Forward Gear 1) | 145 RPM (Forward Gear 2)
Low (L) Auxiliary Shift: 24 RPM (Reverse) | 24 RPM (Forward Gear 1) | 42 RPM (Forward Gear 2)

What warranty does this diesel tiller come with? +

This machine is backed by our comprehensive 3-Year Maximus Warranty for domestic usage, or a 1-Year Commercial Warranty for professional landscaping operations.

Assembly

Do you have assembly instructions available for this rotavator? +

You can find our assembly guide, including pictures, via the PDF link below.

We also offer an assembly package in the form of our Gold PDI Service on new purchases of this model. If selected, our technicians will fully build, test, and lubricate the machine so it arrives on the pallet ready to run.

Download Assembly Guide (PDF) View Gold PDI Service

Operation Guides

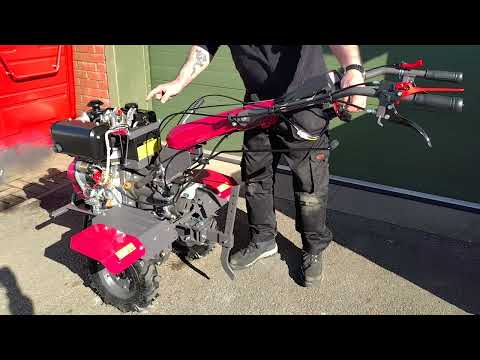

Video Guide: How do I start/stop the TP1100BE-6? +

The machine features both a smooth electric start and a backup manual pull-start. You can watch our help video covering the starting and stopping procedure below:

How do I reverse the TP1100BE-6? +

To safely engage the reverse gear:

First, ensure the machine is in neutral before pulling the reverse lever.
Pull the bottom left-hand lever (the clutch lever) in.
Release the left-hand clutch lever slowly and the machine will begin to reverse.
